Product description:
13in/12out standalone multiswitch for distribution of 12 SAT IF signals including terrestrial for up to 12 users
Brief specification:
Parameter |
Condition |
Value |
Frequency range |
LNB inputs |
950-2300 MHz |
Terr. input |
5-862 MHz (passive)
40-862 MHz (active) |
Outputs |
5-2300 MHz (passive)
40-2300 MHz (active) |
Control |
|
DiSEqC 1.0 (2.0) commands |
Insertion loss |
Sat. |
0 dB avg |
Terr. passive |
19 dB avg |
Terr. active |
5 dB avg |
Sat. inputs isolation |
Between V/H polarisations |
20 dB min |
Between low/high bands |
20 dB min |
Between sat. systems |
25 dB min |
Maximum input level* |
Sat. |
90 dBµV avg** |
Terr. |
100 dBµV avg (passive)
90 dBµV avg (active) |
Maximum output level* |
Sat. |
90 dBµV avg |
Terr. |
81 dBµV avg (passive)
85 dBµV avg (active) |
Power consumption |
From each receiver |
75 mA (18 V) |
From internal power supply |
4.5 W (passive)
6.5 W (active) + LNB |
Terr. preamplifier supply |
|
150 mA max (12 V DC) |
Dimensions (w,d,h) |
|
47.0 x 15.2 x 8.7 cm
(power cord length 130 cm) |
Temperature range |
|
-30 ~ +70 °C |

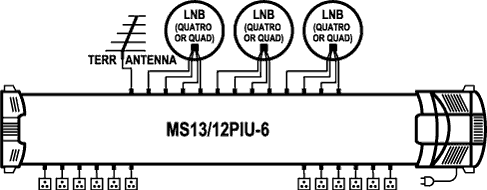

Examples of utilization:
